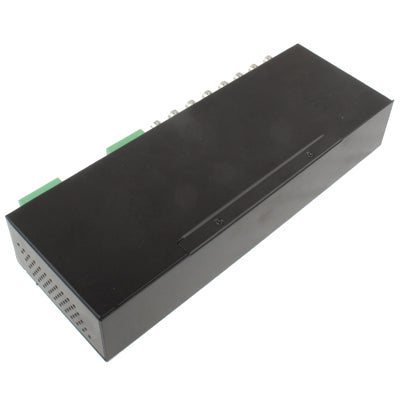

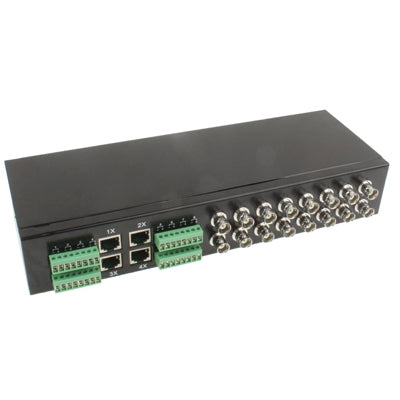

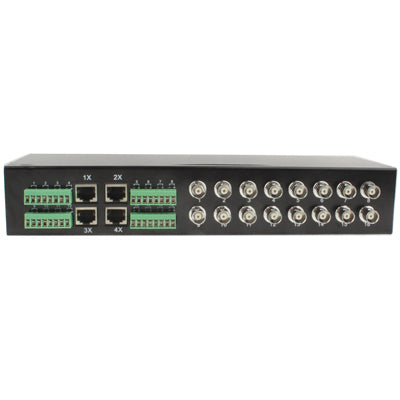

16CH Passive UTP Video Transceiver Rack Mount Style for CCTV
16CH Passive UTP Video Transceiver Rack Mount Style for CCTV
Prix habituel
$96.00 USD
Prix habituel
Prix promotionnel
$96.00 USD
Prix unitaire
par
Frais d'expédition calculés à l'étape de paiement.
Impossible de charger la disponibilité du service de retrait
Product Details:
1) 16ch passive video receiver, metal case
2) Video transmission via UTP CAT5 cable.
3) 10-20% wire costs saved.
4) Full-motion CCTV Video at distances up to 330m.
5) Outstanding interference rejection and transient protection
6) Up to 1500m with any active UTP video receiver
7) No power required
Technical Specifications:
1) Frequency response: DC-8MHz
2) CMRR (Common Mode Rejection Ratio): 60dB
3) Impedance: BNC: 75Ω; RJ45: 100Ω
4) Working temperature: -10°C ~ 70°C
5) Storage temperature: -30°C ~ 70°C
6) Applicable to NTSC, PAL, SECAM and CCIR systems
7) Characteristic impedance: 100 Ω ± 20 Ω
8) DC loop resistance:18 Ω/100m
9) Differential capacitance:62pf/m (Maximum)
10) Size: 28.5x11.5x5cm
1) 16ch passive video receiver, metal case
2) Video transmission via UTP CAT5 cable.
3) 10-20% wire costs saved.
4) Full-motion CCTV Video at distances up to 330m.
5) Outstanding interference rejection and transient protection
6) Up to 1500m with any active UTP video receiver
7) No power required
Technical Specifications:
1) Frequency response: DC-8MHz
2) CMRR (Common Mode Rejection Ratio): 60dB
3) Impedance: BNC: 75Ω; RJ45: 100Ω
4) Working temperature: -10°C ~ 70°C
5) Storage temperature: -30°C ~ 70°C
6) Applicable to NTSC, PAL, SECAM and CCIR systems
7) Characteristic impedance: 100 Ω ± 20 Ω
8) DC loop resistance:18 Ω/100m
9) Differential capacitance:62pf/m (Maximum)
10) Size: 28.5x11.5x5cm
