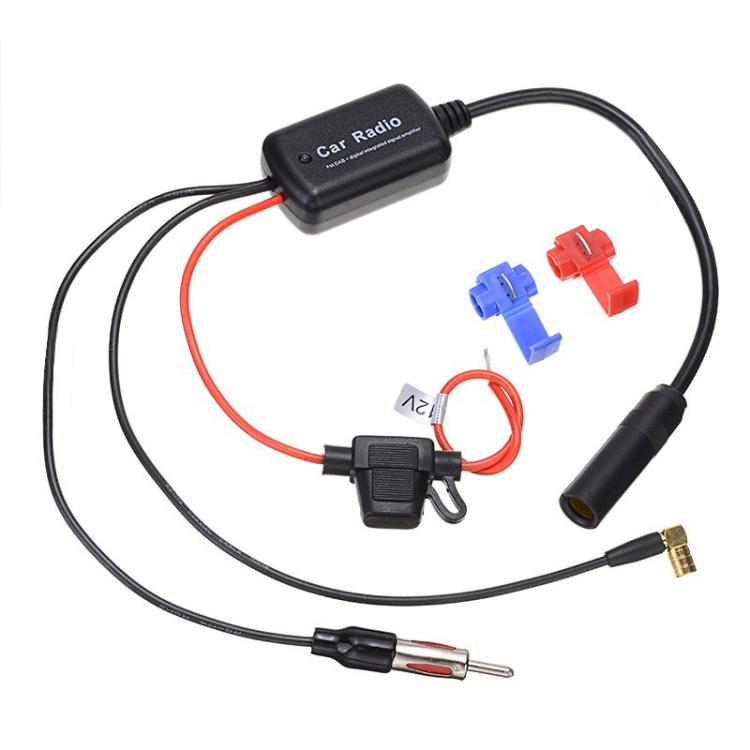

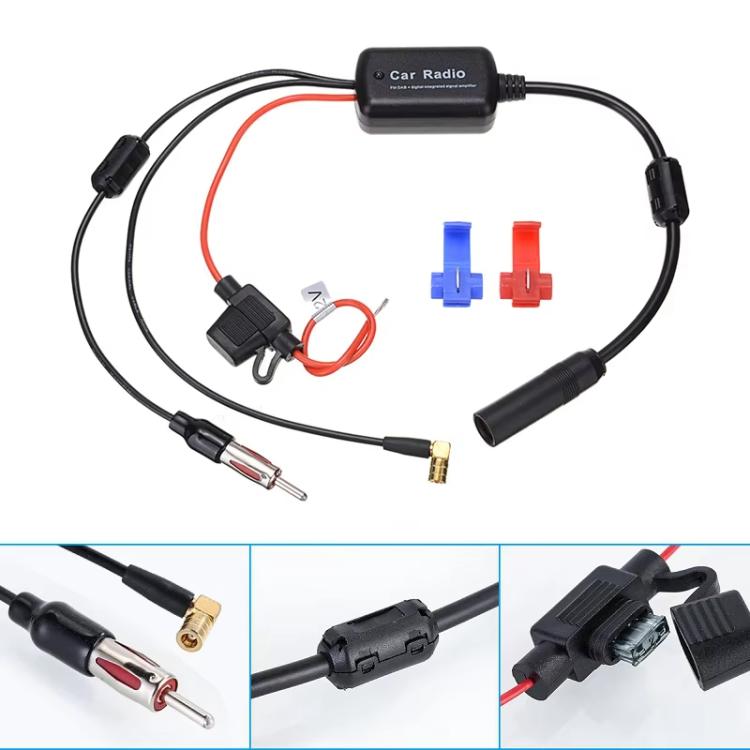

3 In 1 Car Radio FM/AM/DAB Antenna Signal Amplifier

Product Features:
1. Adopt low-noise MMIC device design, more stable operation and higher sensitivity
2. Adopt low insertion loss dedicated IC design, plug in in direct state
3. Support FM and DAB+ digital radio signal amplification function
4. Signal output: FM male connector

Parameters:
1. Frequency range: 88-108MHz 170-240MHz
2. Gain during amplification: 22±3dB
3. Output impedance: 75 ohms
4. Standing wave ratio: 2.5
5. Noise figure: 6dB
6. Output level: 108dBμv
7. Working voltage: DC+12~24V
8. Working current: 70mA
