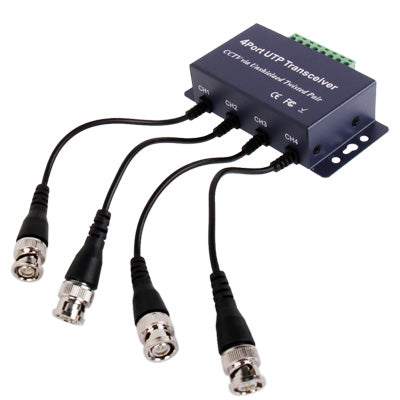

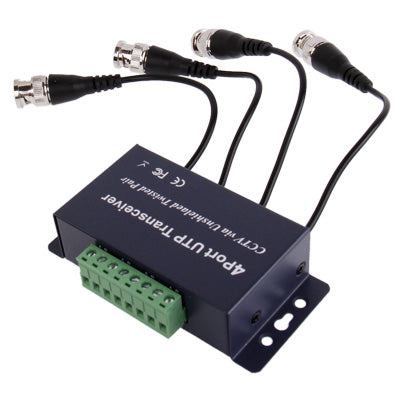

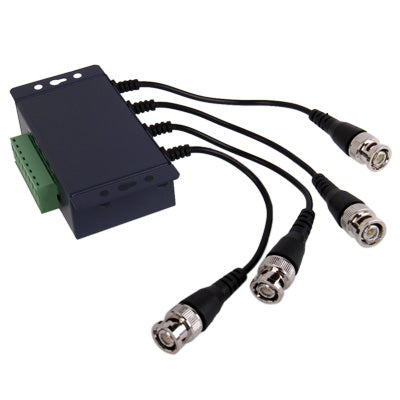

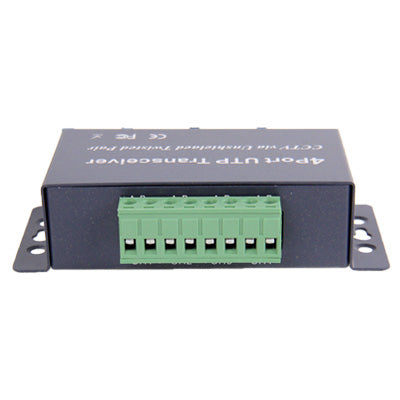

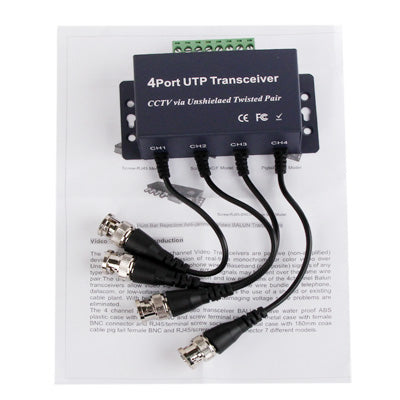

4 CH UTP Passive Balun Transceivers
4 CH UTP Passive Balun Transceivers
Prix habituel
$18.00 USD
Prix habituel
Prix promotionnel
$18.00 USD
Prix unitaire
par
Frais d'expédition calculés à l'étape de paiement.
Impossible de charger la disponibilité du service de retrait
1. Cable distance: Up to 2000ft transmitter-receive UTP cat 5E or better. Point to point transmission of real-time PAL / NTSC or SECAM CVBS video signal
2. Video frequency response: DC TO 6 MHz
3. Common-mode / differential-mode reiection: 15KHz to 5KHz, 55dB typical
4. Line impedance: female / male BNC 75ohms, CAT5 line, terminal 100ohms
5. Wire type: One unshielded twisted pair 24-16 AWG (0.5-1.31mm), category type cat 5 or better. Impedance 100+/-20ohms
6. DC loop resistance 52ohms per 1000ft (18ohms per 100m)
7. Differential capacitance 19pF/ft max (62pF/m max)
8. Power supply: No external power required
9. Dimensions: 10 x 5.5 x 2.5cm
2. Video frequency response: DC TO 6 MHz
3. Common-mode / differential-mode reiection: 15KHz to 5KHz, 55dB typical
4. Line impedance: female / male BNC 75ohms, CAT5 line, terminal 100ohms
5. Wire type: One unshielded twisted pair 24-16 AWG (0.5-1.31mm), category type cat 5 or better. Impedance 100+/-20ohms
6. DC loop resistance 52ohms per 1000ft (18ohms per 100m)
7. Differential capacitance 19pF/ft max (62pF/m max)
8. Power supply: No external power required
9. Dimensions: 10 x 5.5 x 2.5cm
