RZ230 Other measuring instruments 0~1300μm Convenient / Measure / Pro

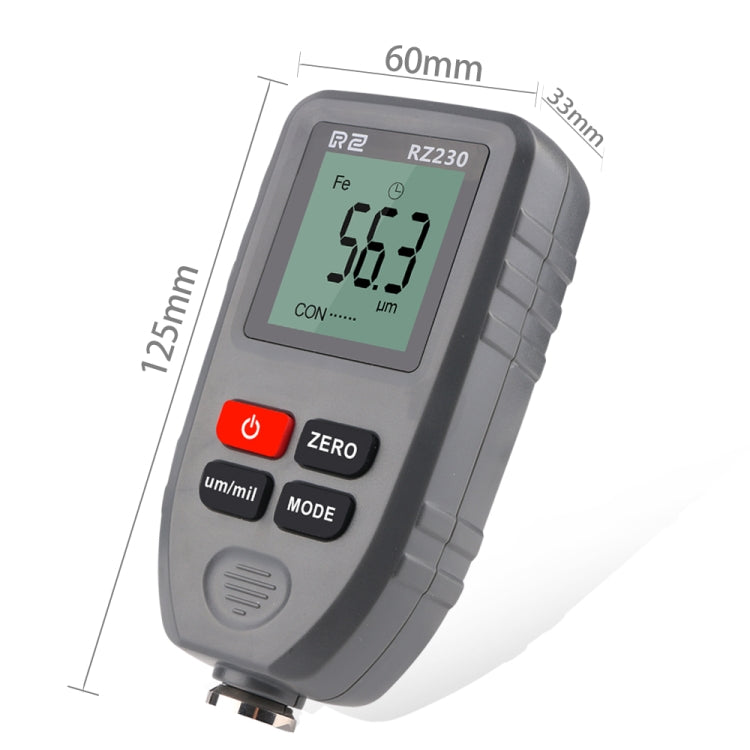

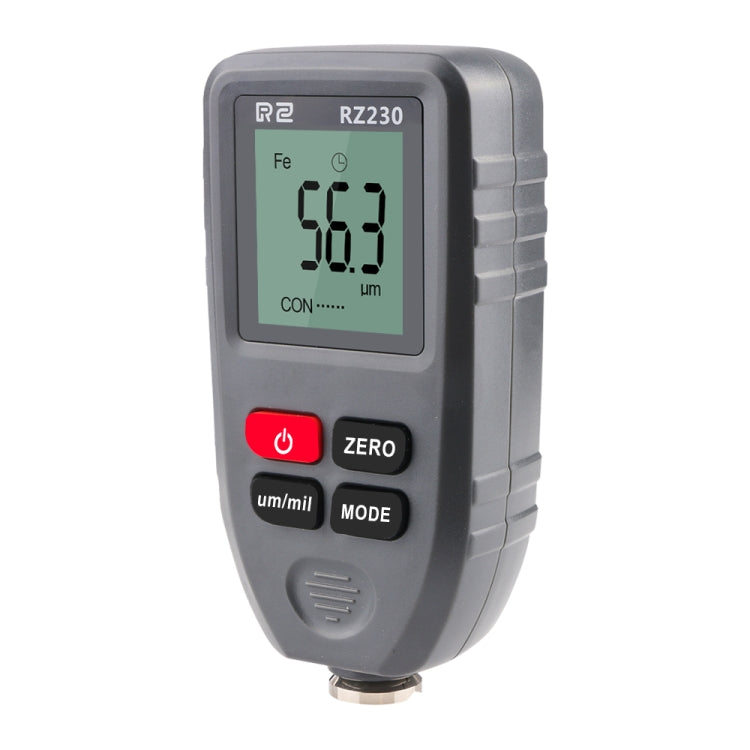

RZ230 Paint Film Meter Tester Coating Measure Thickness Gauge Digital Portable Mini Thickness Gauge Tester

Introductions:

The thickness gauge is used to measure the thickness of the plated and coatedsheeton metal, e.g. paint/enamel/ chrome on steel, paint and anodizing coating on aluminum/copper.

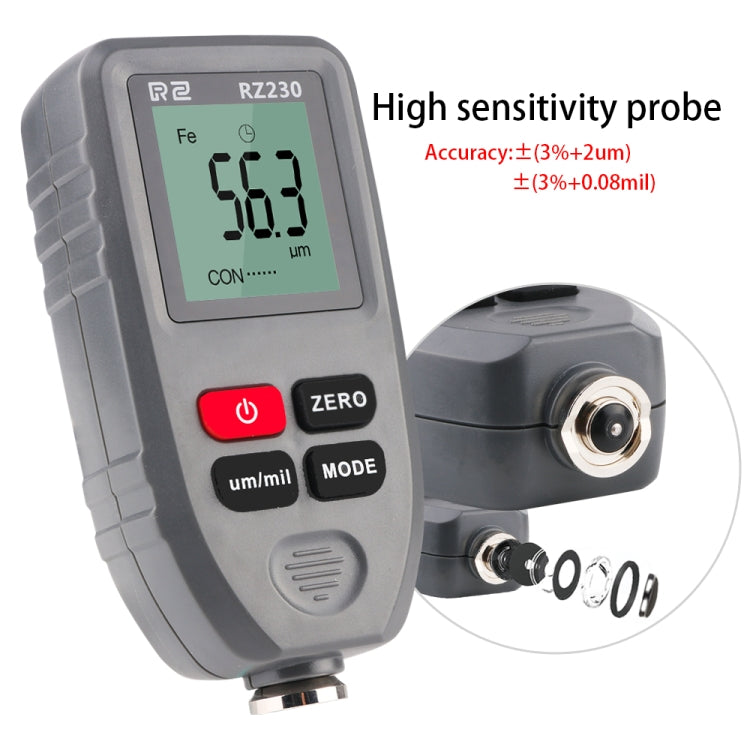

The gauge takes the precision integrated probe, and uses principles of electro-magnetic inductionand the eddy current effect, which automatically detects the attributeof substrates.



Application Field:

The Gauge is designed for non-destructively measuring the thickness of coating and painting. It is essential for material surface treatment and widely used in manufacturing industry, metal-processing industry, chemical industry, commodity inspection area, and also able to work steadily in the laboratory, workshop and outdoor.



Operating Principle:

Thegauge adopts the principle of electromagnetic induction and eddy current effect.It has F probe and N probe.

F probe works on the magnetic induction principle and should be used for detecting the non-magnetic coating’s thickness such as chrome/copper/zinc/varnish/rubber on the iron/steel substrate.

N probe works on the eddy current principle and should be used for detecting the insulating coating’s thickness such as paint/anodizing/ceramics on the aluminum/copper/brass substrate.
